Model ELS-01X ElectoneImages>>
Notes

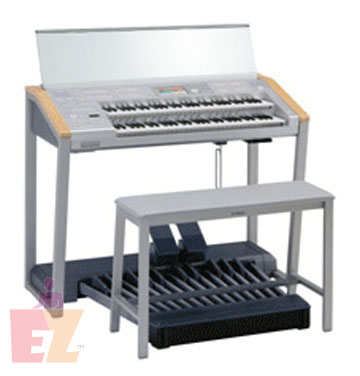

The most prominent new feature of the ELS-01X are the console-sized keyboards. The instrument adds two 61-note keyboards and a full-sized 25-note pedalboard to the STAGEA ELS-01C model. Like the ELX-1m, the ELS-01X has XLR and phono audio-out jacks located at the base of the pedalboard unit. These make it easy to connect the instrument in stage configurations to mixers and external speakers. Since it is a stage model, the instrument does not come standard with built-in amplification and speakers. The speaker unit from the ELS-01C is available as an add-on accessory.

The performance features of the instrument are identical to that of the ELS-01C Custom model STAGEA including 509 built-in voices, 274 built-in rhythms and 300 registration menu music styles. The console layout is the same as the ELS-01C as well with a 6.5 inch touch sensitive TFT color LCD display.

Specifications
First Manufactured: 2005
Technology: Digital
Dimensions: Unknown
Amplification: n/a
Number of Voices: 509

Features
16 Preset Memories 25 Note Pedalboard
61 Note Keyboards AWM2
Assignable Keyboard Percussion Horizontal Touch
Keyboard Percussion MIDI
Programmable Rhythm Rhythm Sequencer
To Host Connector Touch Tone
VA Voice Editing
XG
The ELS-1X Pro STAGEA
